Brand: TRENDNET
Product Code: TEG-S24DG
Availability: In Stock
Product Overview:

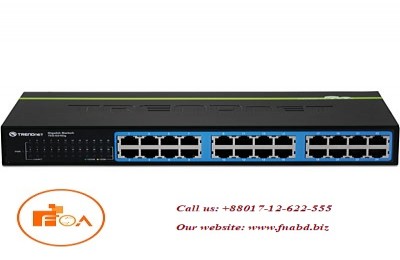

The 24-Port Gigabit GREENnet Switch, model TEG-S24Dg, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
Specification:
24 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
On / off power switch
Features a 48Gbps forwarding capacity
Internal power supply reduces clutter
GREENnet technology reduces electrical power consumption when:
Ethernet port is not in use
Connected device is turned off
Connected device is in power-saving mode
Based on Ethernet cable length
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Store-and-Forward switching architecture with non-blocking wire-speed performance
Integrated address look-up engine with a 16 K MAC address table, and 3.5 MBits RAM data buffer
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9216 Bytes
Sturdy metal housing
Diagnostic LEDs and Plug & Play support
|
HARDWARE |
|
|
Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet |
|
Network Media |
Ethernet: Cat. 5 up to 100 m Fast Ethernet: Cat. 5 and 5e up to 100 m Gigabit Ethernet: Cat. 5e and 6 up to 100 m |
|
Data Rate |
Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) |
|
Protocol / Topology |
CSMA/CD, Star |
|
Power Consumption |
13 Watts (max.) |
|
Switch Fabric |
48Gbps |
|
Interface |
24 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports |
|
Power Button |
On / off power button |
|
Data RAM Buffer |
3.5 MBits |
|
Filtering Table |
16 K entries |
|
Jumbo Frame Support |
Up to 9216Bytes |
|
Diagnostic LED |
Power, Link/ACT, 100Mbps, 1000Mbps |
|
Power |
100~240VAC, 50/60Hz Internal universal switching power |
|
Dimension |
280 x 180 x 44 mm (11 x 7 x 1.7 in.) |
|
Weight |
1.7 kg (3.8 lbs.) |
|
Temperature |
Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F) |
|
Humidity |
Max. 90% (non-condensing) |
|
Certifications |
CE, FCC |
