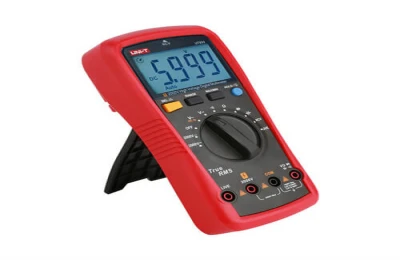

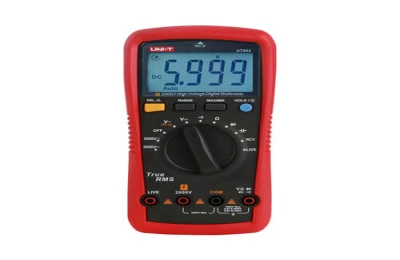

UT892 Digital High Voltage Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently. This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed operation. Features of UT892 2000V AC/DC Digital High Voltage Multimeter 6000 counts True RMS 2000V AC/DC voltage measurement VFC 600V voltage measurement LIVE test 60MΩ resistance/60mF capacitance 10kHz frequency measurement Test lead indication Backlight NCV CAT II 1000V/CAT III 600V Specifications of UT892 2000V AC/DC Digital High Voltage Multimeter: Specifications Range UT892 DC voltage (V) 6.000V/60.00V/600.0V/1000V/2000V ±(0.5%+3) AC voltage (V) 6.000V/60.00V/600.0V/1000V/2000V ±(1.0%+3) Variable frequency voltage (VFC) 600V ±(5%) Frequency (Hz) 10Hz~10kHz ±(0.5%+2) Resistance (Ω) 600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ ±(0.5%+5) Capacitance (F) 60.00nF/600.0nF~600.0μF/6000μF/60mF ±(3.0%+10) Features Display counts 6000 Auto/manual range √ NCV √ LIVE test √ Diode √ Continuity √ Low battery indication ≤ Approximately 2.5V √ Data hold √ Max/Min √ Relative mode √ Auto power off Approximately 15 minutes √ Backlight √ Safety rating CAT II 1000V/CAT III 600V √ General Characteristics Power AA 1.5V x2 Product color Red+Gray Product net weight 350g (Including batteries) Product size 187*88*56mm Standard accessories English manual, test leads, batteries. Standard individual packing Gift box
