Brand: TVT
Product Code: TD-2700AE-PR
Availability: In Stock
Product Overview:

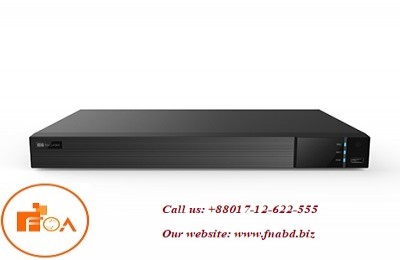

5MP Hybrid HD DVR
TD-2700AE-PR series are 8 / 16 CH 5MP high definition hybrid DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.264 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel
Features:
· 8 / 16 CH TVI / CVI / AHD video input
· 8 / 16 CH 5MP / 4MP / 3MP / 1080P / 720P / Wd1 /D1 recording
· 4 / 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
· Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
· Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
· Multi-mode recording: manual / timer / motion / sensor
· Playback : 8 / 16 CH simultaneously playback
· Search: time slice, time, event ( manual, sensor, motion ), tag search
· Express and flexible backup via USB, network and so on
· Pentaplex: preview, record, playback, backup and remote access
· DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
· Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
· Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
· Multi-user online simultaneously
· Authorization management, log review and device status review
· HDMI 4K output, true high resolution display
· Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
· Support NAT function and QRCode scanning by mobile phone and PAD
· Powerful smart phone & Pad surveillance with iOS and Andriod OS
Product Specification:
Product Model
TD-2708AE-PR
TD-2716AE-PR
System
Main Processor Chip
Cortex A9
Cortex A9
Operation System
Embedded Linux
Embedded Linux
Coding
Standard H.264 High Profile
Standard H.264 High Profile
Video
Local Video Input
BNC × 8
BNC × 16
Input Resolution
TVI/AHD：5MP 20fps;4MP、3MP、1080P、720P、WD1 real time
CVI：4MP、3MP、1080P、720P real time
TVI/AHD：5MP 20fps;4MP、3MP、1080P、720P、WD1 real time
CVI：4MP、3MP、1080P、720P real time
Network Input/Access Bandwidth
IPC×4 / 24Mbps
IPC×4 / 24Mbps
Output
HDMI×1:3840×2160/1920×1080/1280×1024/1024×768
VGA×1:1920×1080/1280×1024/1024×768
HDMI×1:3840×2160/1920×1080/1280×1024/1024×768
VGA×1:1920×1080/1280×1024/1024×768
CVBS
BNC×1:CVBS(used as the main or spot output)
BNC×1:CVBS(used as the main or spot output)
Audio
Local Audio Input
RCA×4
RCA×4
Two-way audio
Take up channel one audio input
Take up channel one audio input
Local Output
RCA×1
RCA×1
Record
Resolution
5MP, 4MP, 3MP,1080P, 720P, WD1, D1
5MP, 4MP, 3MP,1080P, 720P, WD1, D1
Local Record Frame Rate
5MP:10fps(PAL / NTSC)
4MP/3MP:12fps(PAL)/15fps(NTSC)
1080P/720P/WD1/D1:25fps(PAL)/30fps(NTSC)
5MP:10fps(PAL/NTSC)
4MP/3MP:12fps(PAL)/15fps(NTSC)
1080P/720P/WD1/D1:25fps(PAL)/30fps(NTSC)
Bit Stream
768Kbps-8Mbps
768Kbps-8Mbps
Mode
Manual, timer, motion, sensor
Manual, timer, motion, sensor
Image Quality
5 Level
5 Level
IPC Input
Resolution
4MP/3MP/1080P/960P/720P
4MP/3MP/1080P/960P/720P
IPC Record Frame Rate
4MP:12fps (PAL)/15fps ( NTSC ) 3MP/1080P/960P/720P:25fps(PAL)/30fps(NTSC)
4MP:12fps (PAL)/5fps ( NTSC ) 3MP/1080P/960P/720P:25fps(PAL)/30fps(NTSC)
Playback
Playback Channel
8 CH
16 CH
Network
Interface
RJ45 10 / 100Mbps × 1
RJ45 10/100/1000Mbps × 1
Network Protocol
TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
TCP/IP、PPPoE
