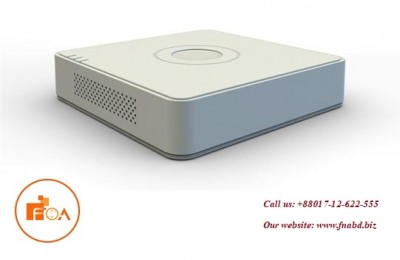

Brand: HIKVISION
Product Code: DS-7104HQHI-K1
Availability: In Stock
Product Overview:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 4 MP lite resolution for recording
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
4/8/16-ch synchronous playback
Specification:
Video/Audio Input
Audio Input:
1-ch
Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
Video Input Interface:
BNC (1.0 Vp-p, 75Ω)
Audio Compression:
G.711u
Audio Input Interface:
RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output:
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:
32 Kbps-6 Mbps
Stream Type:
Video/Video&Audio
Audio Output:
1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:
64kbps
Dual Stream:
Support
Synchronous Playback:
4-ch
Network management
Remote connections:
32
Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type:
1 SATA Interface
Capacity:
Up to 4TB capacity for each disk
External Interface
Network Interface:
1; 10M / 100M self-adaptive Ethernet interface
USB Interface:
2 USB 2.0 Interfaces
General
Power Supply:
12V DC
Consumption:
≤ 8W(without hard disks)
Working Temperature:
-10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity:
10% ~ 90%
Chassis:
Mini 1U chassis
Dimensions:
200 × 200 × 45 mm
(7.9 × 7.9 × 1.8 inch)
Weight:
≤ 1 kg (2.2 lb)
