Brand: TVT
Product Code: TD-9421S3L
Availability: In Stock
Product Overview:

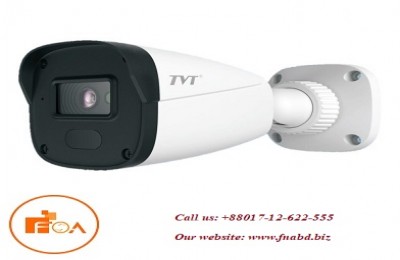

2MP Network IR Water-proof Bullet Camera
Features:
2MP ( 1920 × 1080) H.265 coding
Max.resolution: 1920 1080
ICR auto switch, true day / night, ROI coding
3D DNR, digital WDR, HLC, BLC, defog
10~20m IR night view distance
DC12V/PoE power supply
P2P function optional
IP 67 ingress protection
Support dual streams
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent analytics (optional): video blur detection, line crossing detection and region intrusion detection
Product Specification:
Model
TD-9421S3L
Camera
Image Sensor
1 / 3.2 "CMOS
Image Size
1920×1080
Electronic Shutter
1 / 25 s ~ 1 / 100000 s
Iris Type
Fixed Iris
Min. Illumination
0.012lux @F1.2, AGC ON; 0 lux with IR
0.046 lux @ F2.0, AGC ON; 0 lux with IR
Lens
2.8 mm @F2.0, (fixed lens), horizontal field of view: 93.7°
3.6 mm @F2.0, (fixed lens), horizontal field of view: 75.8°
Lens Mount
M12
Wide Dynamic Range
Digital WDR
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
3D DNR
Angle Adjustment
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression
Main stream: H.265 / H.264; Sub stream: H.265 / H.264/MJPEG
H.265 Compression Standard
Main [email protected] High Tier
Resolution
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 480 × 240, CIF
Main Stream
60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps)
Sub Stream
60Hz : D1/CIF/480×240(1~30fps); 50HZ: D1/CIF/480×240 (1~25fps)
Bit Rate
64 Kbps ~ 6 Mbps
Bit Rate Type
VBR / CBR
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Interfaces
Network
RJ45
Video Output
No
Audio
No
Storage
No
Hardware Reset
No
Functions
Remote Monitoring
Web browsing,CMS remote control
Online Connection
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol
ONVIF
Storage
Network remote storage
Smart Alarm
Motion detection
Intelligent Analytics
Region intrusion detection, video blur detection and line crossing detection
General Function
Watermark, IP address filtering, video mask, heartbeat, illegal login lock
PoE
Yes
IR Distance
10 ~ 20m
Ingress Protection
IP67
Others
Power Supply
DC12V/PoE
Power Consumption
< 5W
Operating Environment
- 20 °C ~ 55 °C (-4°F~131°F)
Humidity: less than 95 % (non-condensing)
Dimensions ( mm )
162.1 × 74.8 × 73.8
Weight ( net )
Approx. 0.24KG
Installation
Ceiling mounting; Wall mounting
Certificate
CE, FCC
Environmental Protection
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
