Brand: NITGEN
Product Code: SW101-M2R
Availability: In Stock

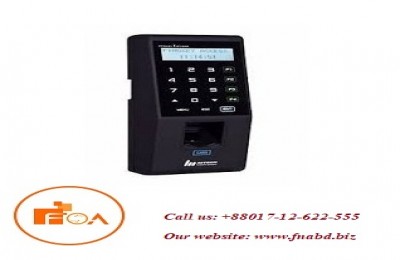

Product Overview:
> 32 bit CPU,8MB RAM/8MB flash memory.
> LCD screen, finger print sensor,2000 template capacity.
> 1000 finger print capacity.
> 20000log capacity.
> TCP/IP/RS485/Wiegand communication.
> 20~60℃ operating temperature.
> 77x178x50mm dimension.
Product Specification:
CPU
32 bit / 200MHz (Marvell)
Memory
8MB DRAM / 8MB Flash
Display
122×32 Graphic LCD (Black&White)
FP Sensor
Type
Optical
Resolution
500 DPI
Authentication Mode
Fingerprint, Password, RF Card
1:1 verification Time
< 1 sec.
1:N Identification Time
< 2 sec.(2,000 templates)
Template capacity
2,000 templates(2templates/1finger, 1,000 user)
Log capacity
20,000 logs
Communication
TCP/IP, RS485(TBD), Wiegand In/Out(26/34 bit)
Output Relay
Deadbolt, EM Lock, Door Strike, Automatic Door
Operating Temperature
-20~60 ℃
Operation Humidity
< RH 90 %
Certification
KC, CE, FCC
Size
77(W) x 178(L) x 50(D) mm
